Ham Radio Transceiver

    VLF / HF / VHF Transceiver PT-8000A



PT-8000A

VLF / HF / VHF
Ham Radio Transceiver
  RX:
   9 kHz ... 30 MHz / 50 ... 54 MHz   144 ... 148 MHz / 110 ... 143.9 MHz
  TX:
      160 / 80 / 60 / 40 / 30 / 20 / 17
      15 / 12 / 10 / 6 / 2 m-band
All-Mode • 2x RX • DSP
16-pol analog + digital filters
  PA: 200 W | 100 W (HF | VHF)

Brochure

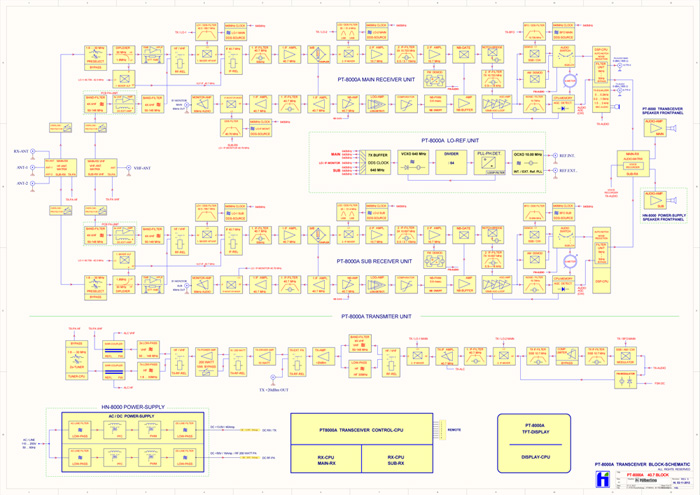

Block schematic PT-8000A (PDF)

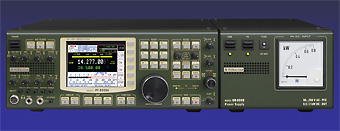

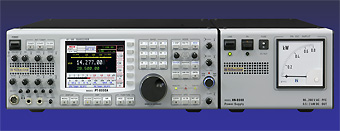

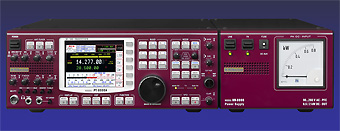

         Front Panel Colors

•  Anthracite grey (RAL 7016)

•  Claret violet (RAL 4004)
•  Brillant blue (RAL 5007)


         •  Bronze green (RAL 6031)
•  Telegrey 1 (RAL 7045)



    Transceiver PT-8000A

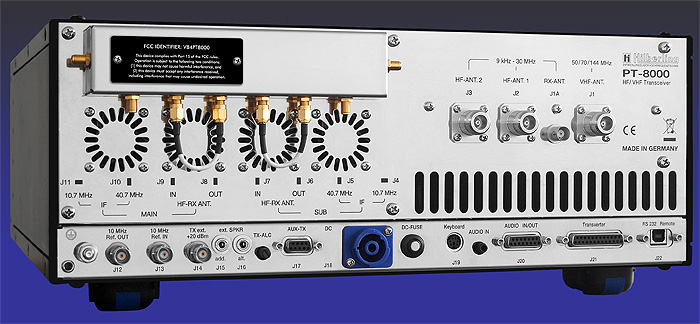

Rear View

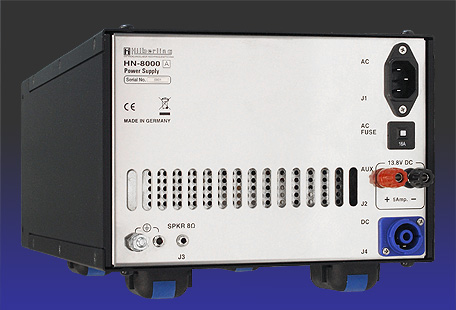

    Power Supply HN-8000
Rear View

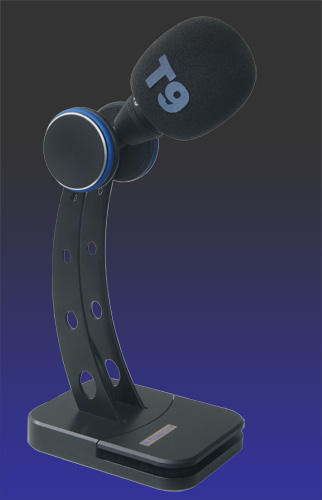

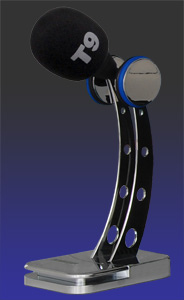

    Dynamic T9
Base Station Microphone

Kidney-shaped acoustic response
600 Ohm @ 1 kHz
Microphone Preamplifier integrated
Capsule protected against structure-borne noise

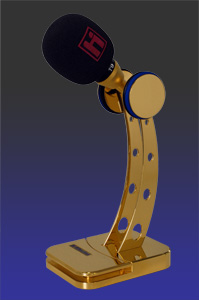

Finish
•  black anodized
•  chrome
•  gold

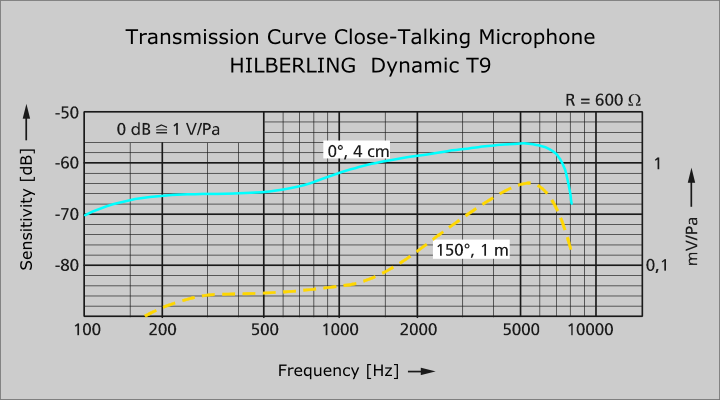

    Transmission Curve
      top


    Ham Radio Power Amplifier

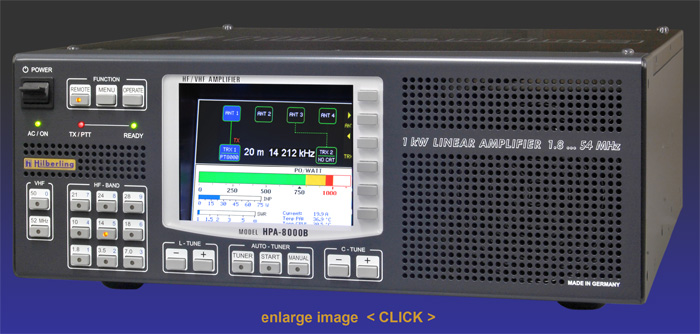

    1kW Power Amplifier HPA-8000B-54




HPA-8000B-54


1kW Out Linear Amplifier

  1.8 ... 54 MHz

Ham Radio Bands

160 / 80 / 40 / 30 / 20
17 / 15 / 12 / 10 / 6 m

All-Mode
  AM / FM / SSB / CW

Internal Power Supply
200 ... 260 V AC

Prospectus (PDF 3.1MB)
Manual (PDF 3.9MB)





HPA-8000B-54

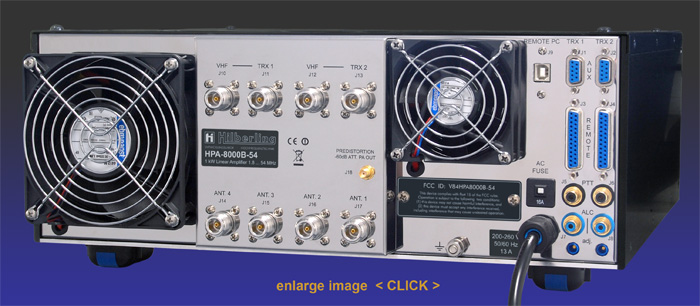

Rear View



    HPA-8000B-54

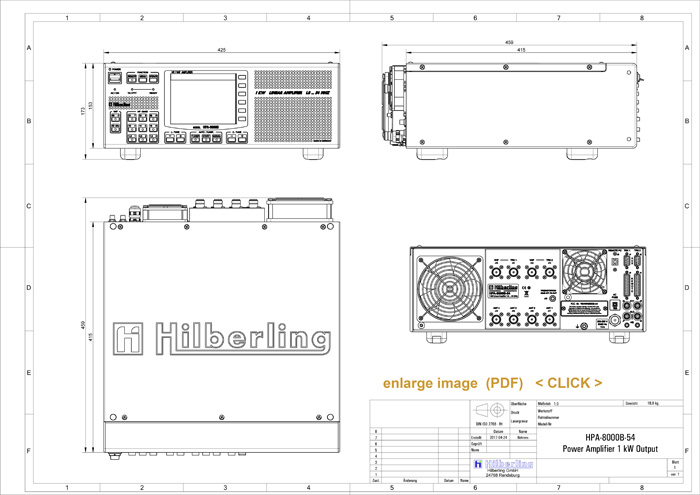

Mechanical Drawing


Need More Information? You can send an e-mail at:  Hilberling-USA(click)
  Or call:  1-804-814-4762
  Hilberling Factory Web Site:  Hilberling.de(click)
